Digital X Ray Machine
- Product Introduction
Key features:
1,EM3620 use the most advanced flat-panel detector, which is imported from france,Thales brand,
it designed for surgical and interventional units, this detector is ready to run almost instantly .
2,With the Digital radiography , images collected by high-resolution imaging technology to solve
the energy loss of the traditional CCD detector, and geometric distortion problem.
3,Standardized PACS system can be adapted to the needs of the new network era . With stable per
formance, low exposure dose, high-quality images can be easily obtained.

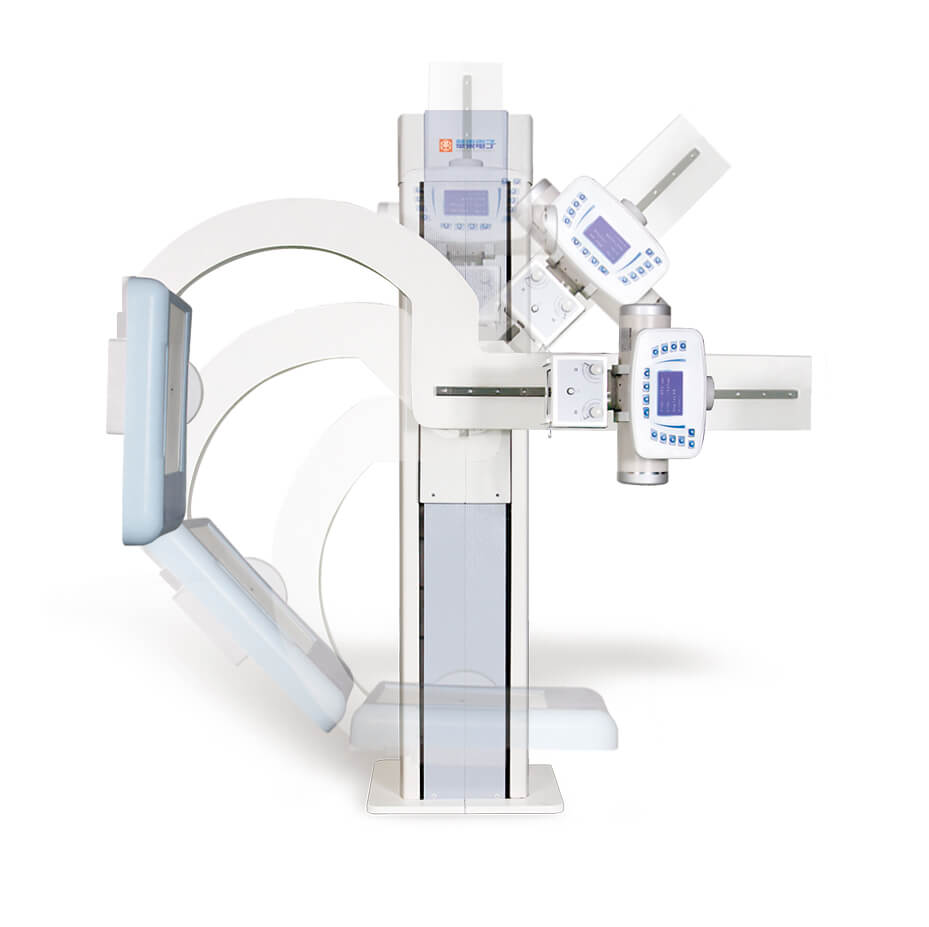

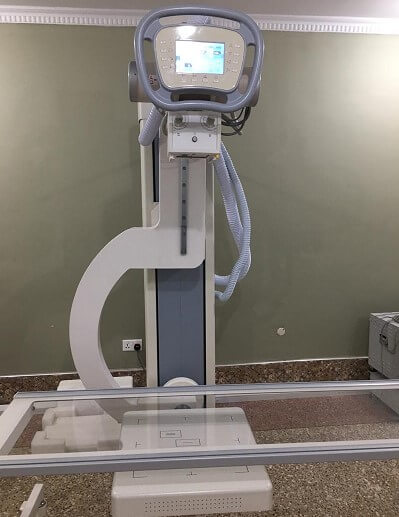

U-arm Digital Radiography Specification:
High frequency x-ray generator
20kw, 125kv, 200mA
Exposure time 0.0025~6.4s
With function of self-protection
X-ray Tube
Toshiba x-ray tube
Rotating anode, focal spot 0.6/1.2mm
Anode heat capacity 140KHu
Digital flat panel detector
Size 16”*17”
Spatial resolution 3.4lp/mm
Image acquisition system (DR workstation)
CPU: Intel Pentium Core
Memory 2GB, hard disk 320G
Monitor: Dell 19” monitor
Image processing: image rotating, image zooming, image processing, image
printing, image transmission, e-report printing, etc.
Mechanical figures
Vertical travel 650mm---1700mm
SID range 1000---1800mm
Detector rotating range -45°~0~+45°
U-arm rotating range -30°~0~120°
Mobile bed dimension 2050*550*800mm
